Triple Action Baler Side Ejection

  • Home
  • Triple Action Baler Side Ejection

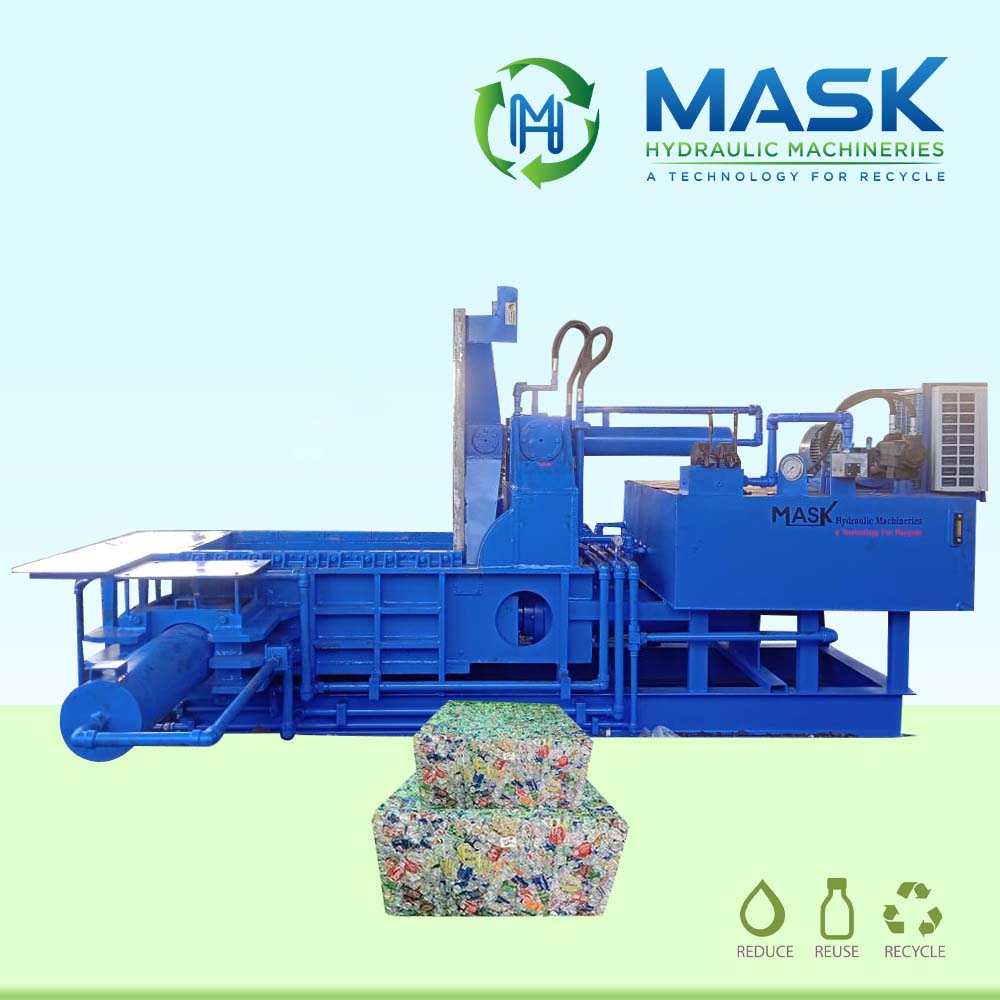

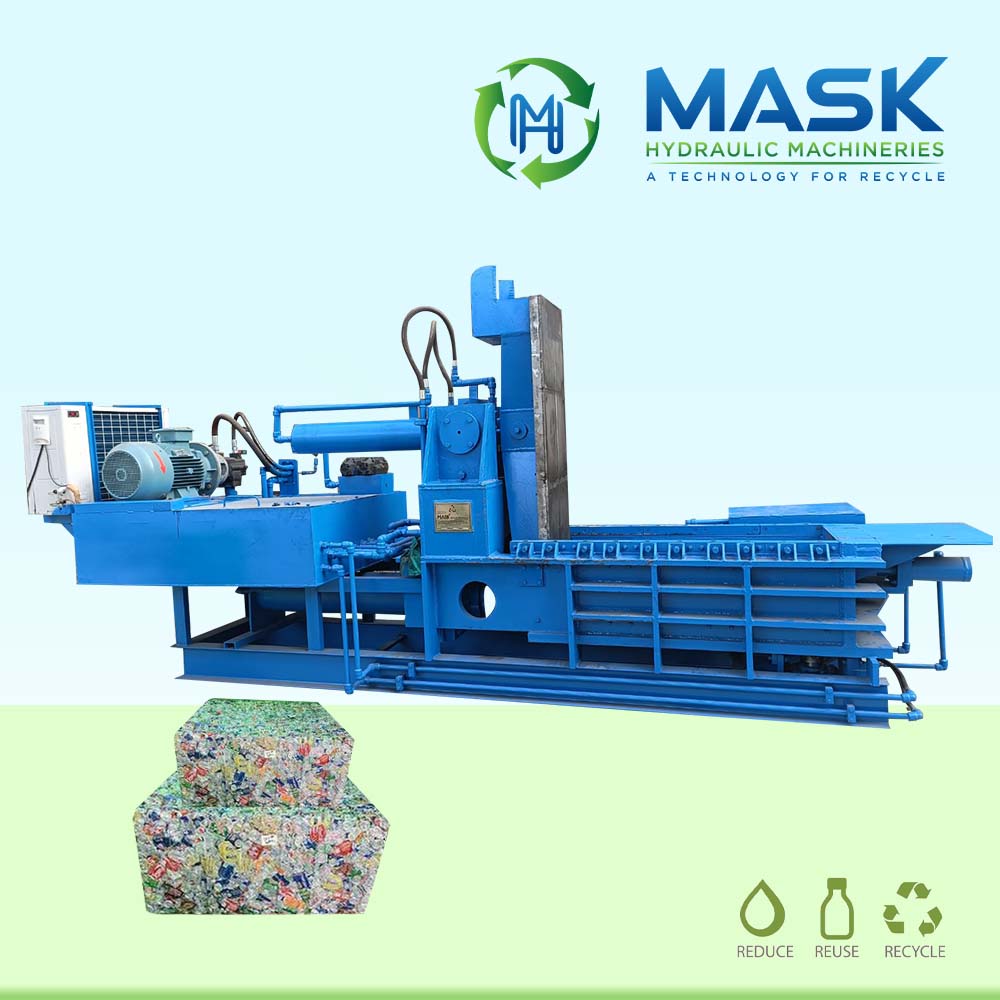

TRIPLE ACTION BALER SIDE EJECTION 4 jpg 1

Offering High Quality Triple Compression Baler Side Ejection

The Triple Compression Baler Side Ejection metal scrap baling press machine is primarily used to compress light scrap metal such as waste cans and tins, stainless steel scrap, copper scrap, various metal shavings, waste aluminum profiles, aluminum chips, non-ferrous metal scrap, and so on.
Mask’s Triple Compression Baler Side Ejection metal scrap baling press machine is mainly used in steel manufacturers and many waste disposal recycling centers. This equipment is composed of three sections: hydraulic system, electrical system, mainframe, automatic PLC control, or manual control, which is a more optional choice for you. It can compress many materials such as metal scrap, aluminum scrap, stainless scrap, copper scrap, all kinds of ferrous and non-ferrous metals, and more.

Download Catalogue
LOOKING FOR Bailing Machineries Manufacturers, Suppliers

A Technology For Recycle

Contact Us

telephoneCall Now: +91-88491-71589

MASK Hydraulic Machineries logo w

Working Principle of Triple Compression Baler Side Ejection

The metal scrap is placed in the box chamber using a grabber or other tools. Then, the lid of the baler machine is closed, and the side cylinder presses the scrap metal to the limit of the side cylinder. Then, the main cylinder begins to press the scrap to the limit of the non-ferrous metal baling press machine, the locking cylinder opens, and the main cylinder pushes the stainless steel bale out. At last, every cylinder returns to its initial position, and the baling cycle is completed.

View All Products
TRIPLE ACTION BALER SIDE EJECTION 3jpg 1
TRIPLE ACTION BALER SIDE EJECTION 2 jpg 1

Applications of Triple Compression Baler Side Ejection

Advantages of Triple Compression Baler Side Ejection Metal Scrap Baling Press

TRIPLE ACTION BALER SIDE EJECTION 1jpg 1
1. This machine adopts a side continuous push-out type, so the bale can be pushed out continuously, providing high efficiency.
2.It is simple to operate and maintain, saving stock and labor costs, transportation costs, and space.
3. Automatic PLC control with remote and manual control, two methods of control for your convenience, easy to use and maintain.
4.The inner wear plate adopts a well-known international brand of NM450 that is both durable and trustworthy, and Hardox450 is optional.
5.Output capacity ranges from 500 to 5000 kg per hour, giving you more alternatives.
6. Bale size and weight can be modified to meet your specific needs.
7. Uses German Hydraulic technology to ensure the equipment runs smoothly and consistently.
8. Adopts an international well-known brand of hydraulic pump and valves.

Parameters

Model Box Size Bale Size Bale Weight (KG) Power (HP)
SUPER JUMBO 16 72X36X30 16X16 100-125 50
SUPER JUMBO 15 74X38X30 15X15 90-140 50
SUPER JUMBO 18 72X36X30 18X18 160-240 50
SUPER JUMBO 20 84X42X36 20X20 220-330 2X30
SUPER JUMBO 24 84X48X40 24X24 350-550 2X40
SUPER JUMBO 26 90X60X48 26X26 450-600 2X40
SUPER JUMBO 30 108X60X48 30X30 600-900 2X60
